GEOTHERMAL VALVE


Geothermal energy is the heat generated in the Earth and is normally extracted as hot steam from natural underground reservoirs.


High-Temperature valves are required for use in these geothermal heat systems for shut-in and flow control purposes.


NuStar “NuGeo” Geothermal valves are designed to withstand extreme conditions and operate safely.



FEATURES

  • • Designed to ANSI/ASME/API
  • • Sizes 2” to 12” Class 600/900
  • • Up to +600°F (315°C)
  • • ASME B16.5 Flange Connections
  • • Bolted Bonnet with Metal Gasket
  • • High Temperature Graphite packing
  • • Internal Rising Stem with Dual Indicators
  • • Split Gate with Expander
  • • Metal-to-Metal Gate/Seat sealing /div>
  • • Handwheel with Gearbox for large bore valves


VIEW OUR
GEOTHERMAL VALVE
PROJECTS

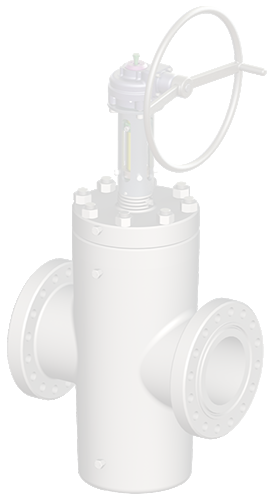

GeoThermal Valve
Handle

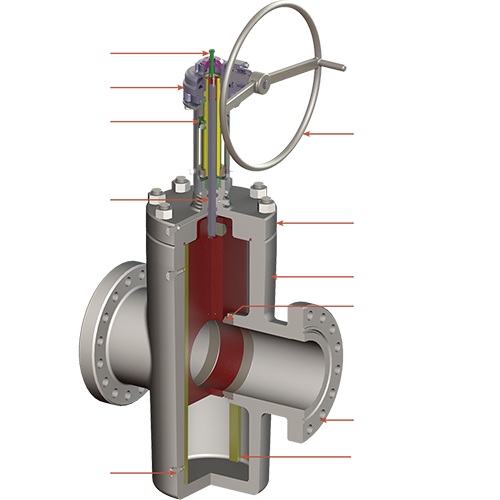

Drag above slider for sectional view
