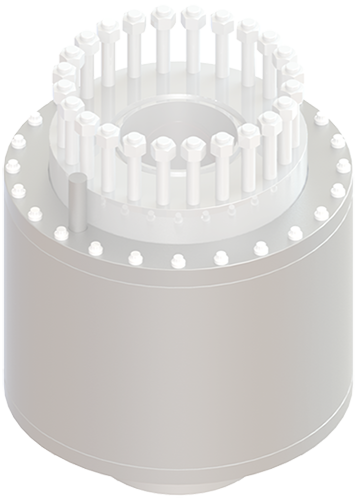

NS-4M CONNECTOR

The wellhead connector is a hydraulically operated connector that can be locked to, and unlocked from, a matching profile at the top of the subsea wellhead housing. The wellhead connector carries a metal seal gasket which provides a seal between the wellhead housing and the wellhead connector. This metal seal gasket is fully energized by the locking force of the wellhead connector.

FEATURES

The NS-T Threaded Connector has the following features:

• • Collet finger segments for direct tensile load path
• • Single piece housing for increased bending capacity
• • Robust piston seals
• • Large actuating piston area creates a greater preload and unlocking force
• • Three hydraulic circuits (primary lock, primary un-lock, secondary un-lock)
