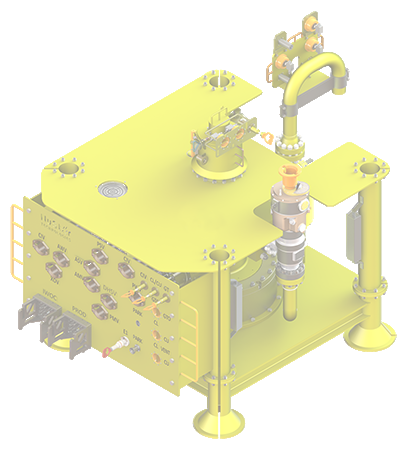

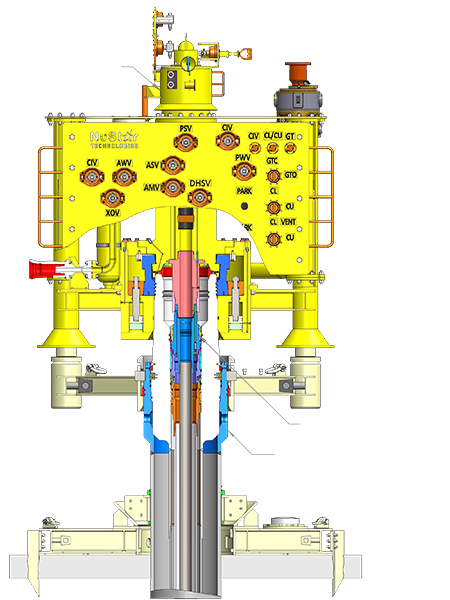

SUBSEA VERTICAL TREE

FEATURES

• 5,000 PSI to 15,000 PSI
• API Requirements ; 17D / 6A, PSL 3G
• Guidance : Guidepost or Guideline less (funnel down)
• Controls : Tree mounted SCM
• Choke : Production / Injection Choke on Tree
• Penetrations : Hydraulic and electrical for DHPT
