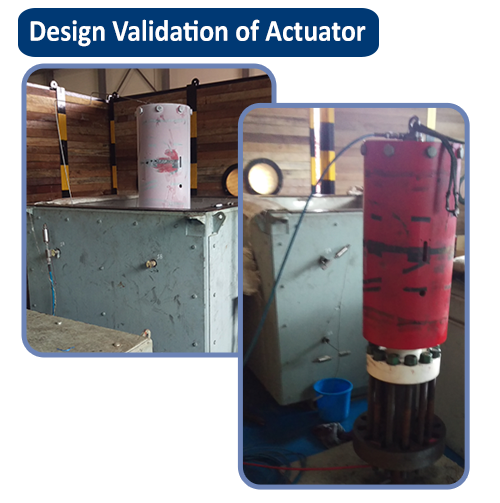

TESTING - Design Validation of Actuator in accordance to API 6A 20th Edition Annex F


Manifold

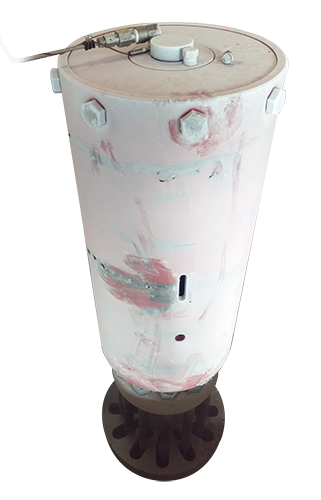

NuStar Technologies has conducted design validation on 5” Coil Tubing Hanger and Tubing Head Spool in accordance to API 6A 20th Edition Annex F PR2 (Group 5).


Scope of Work

  • • 20% and 80% working pressure test at room temperature
  • • Dynamic Test at Room Temperature (160 Cycles)
  • • Dynamic Test at Maximum and Minimum Temperature (20 cycles each)
  • • Body pressure/temperature cycling test.
  • • Working pressure and low pressure body test at room temperature
