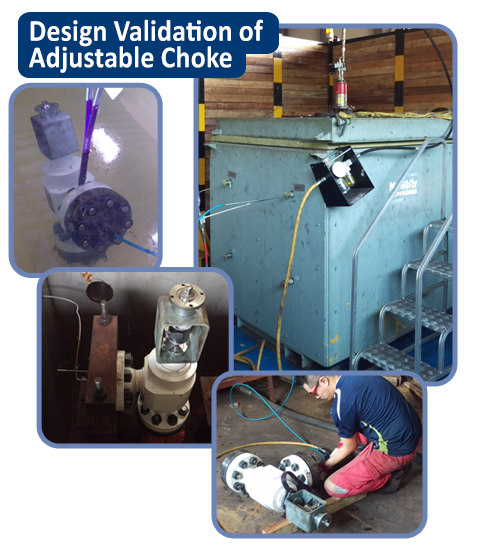

TESTING - Design Validation of Adjustable Choke in accordance to API 6A 20th Edition Annex F PR1


Manifold

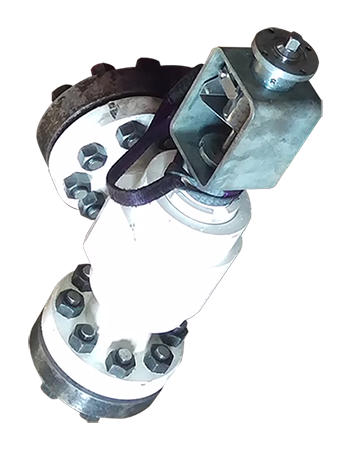

NuStar Technologies has conducted design validation on 2-1/16” adjustable choke in accordance to API 6A 20th Edition Annex F PR1. The validation was done with a pressure rating of 5,000 psig at a temperature class of P+U (-29°C to 121°C).


Scope of Work

  • • Force Measurement
  • • Gas body and seat-to-body seal test at room temperature
  • • Dynamic Test at Room Temperature (3 Cycles)
  • • Dynamic Test at Maximum and Minimum Temperature (3 cycles each)
  • • Body pressure/temperature cycling test.
