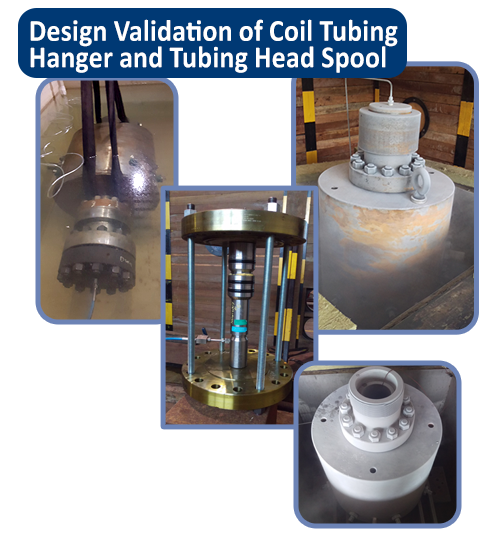

TESTING - Design Validation of Coil Tubing Hanger and Tubing Head Spool in accordance to API 6A Annex F PR2 (Group 5).


Manifold

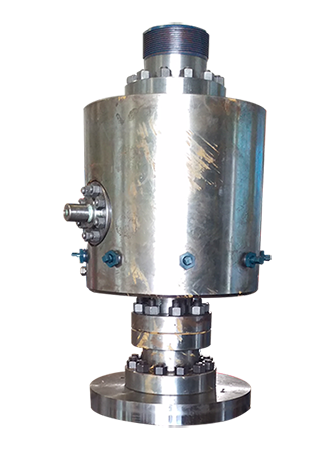

NuStar Technologies has conducted design validation on 5” Coil Tubing Hanger and Tubing Head Spool in accordance to API 6A 20th Edition Annex F PR2 (Group 5).


Scope of Work - Coil Tubing Hangar

  • • Hanger internal pressure test
  • • Back pressure valve preparation test
  • • Body pressure/temperature cycling test


Scope of Work - Tubing Head Spool

  • • Body test at room temperature
  • • Load cycling test
  • • Body pressure/temperature cycling test
