SUBSEA DEWATERING MANIFOLD


Subsea manifold is a structure containing a system of valves, pipe headers and branched pipework that are designed to commingle and distribute produced fluids from multiple wells or to distribute injection fluids into the wells.


FEATURES

  • • Provides an interface between the production pipelines, flowlines and subsea wells.
  • • Collects and distributes produced fluids from subsea wells (cluster or satellite).
  • • Distributes injection fluids, gas, chemicals and control fluids to subsea trees.
  • • Distributes electrical and hydraulic power.
  • • Custom anchor foundations depending on hydrodynamic analysis.
  • • Accommodates various flowline, header sizes and sensors.
  • • Provision of looped pipe headers to allow round trip pigging.
  • • Provision of field proven tie-in connection systems (Horizontal or Vertical)




PRODUCTION MANIFOLD



PIPELINE END MANIFOLD


PLET & PIG LAUNCHER
Product Preview
Handle
Drag above slider for sectional view

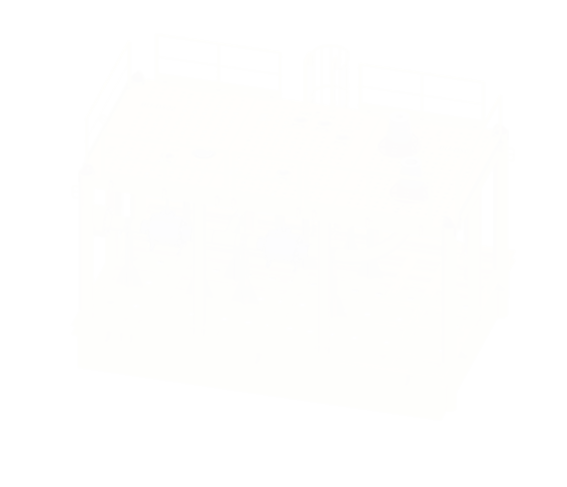

Dewatering Manifold
