SUBSEA PRODUCTION MANIFOLD

Subsea manifold is a structure containing a system of valves, pipe headers and branched pipework that are designed to commingle and distribute produced fluids from multiple wells or to distribute injection fluids into the wells.

FEATURES

• • Provides an interface between the production pipelines, flowlines and subsea wells.
• • Collects and distributes produced fluids from subsea wells (cluster or satellite).
• • Distributes injection fluids, gas, chemicals and control fluids to subsea trees.
• • Distributes electrical and hydraulic power.
• • Custom anchor foundations depending on hydrodynamic analysis.
• • Accommodates various flowline, header sizes and sensors.
• • Provision of looped pipe headers to allow round trip pigging.
• • Provision of field proven tie-in connection systems (Horizontal or Vertical)

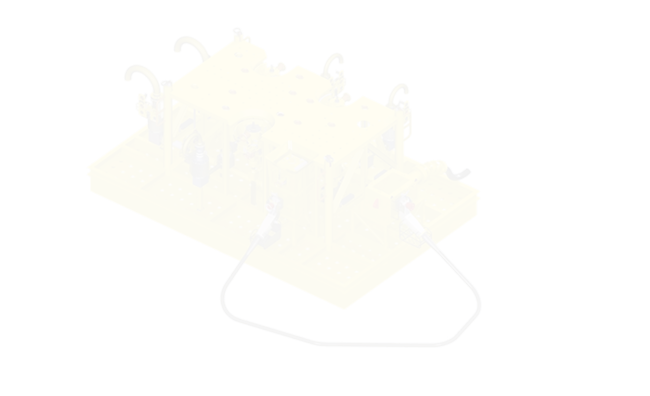

SUBSEA PRODUCTION MANIFOLD

The Manifold serves as a central “commingling point” for combine production for up to 3 subsea production wells and as a connection point for two in-field flowlines. The Manifold also housed SCMMB and SCM to control the valves and monitor choke position. The SCM is retrievable and is connected to HOST production control system via Electrical Hydraulic Multiplex (EH-MUX) Umbilical with stab plate termination.
